Reliable Serrated Chuck Jaws from Dillon Manufacturing


Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6131

Dillon Manufacturing prides itself on offering the largest selection of chuck jaws in the U.S., with 1.5mm x 60° serrated jaws being one of our many available varieties.

These serrated jaws are offered in the following product types:


Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6131

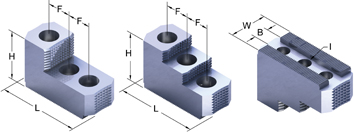

1.5MM X 60° SERRATED
— SOFT JAWS

Add “A” to beginning of part number when ordering aluminum jaws.

Add “P” to end of part number when ordering pointed jaws.

Made with 1018 steel or 6061 aluminum.

← Scroll →
Ø
Diameter
 Part
Number
 L
Length
 H
Height
 W
Width
 B
Slot
Width 		F
Bolt
Spacing 		I
Screw
Size 		P
Pitch
4 HO4 2.00 1.00 .75 .313 .591 M6 1.5MM x 60°
HO4P 2.00 1.00 .75 .313 .591 M6 1.5MM x 60°
HO4H 2.00 2.00 .75 .313 .591 M6 1.5MM x 60°
HO4HP 2.00 2.00 .75 .313 .591 M6 1.5MM x 60°
HO4-3H 2.00 3.00 .75 .313 .591 M6 1.5MM x 60°
HO4-3HP 2.00 3.00 .75 .313 .591 M6 1.5MM x 60°
KW4 2.00 1.50 1.00 .394 .551 M8 1.5MM x 60°
KW4P 2.00 1.50 1.00 .394 .551 M8 1.5MM x 60°
KW4-2H 2.00 2.00 1.00 .394 .551 M8 1.5MM x 60°
KW4-2HP 2.00 2.00 1.00 .394 .551 M8 1.5MM x 60°
KW4H 2.00 3.00 1.00 .394 .551 M8 1.5MM x 60°
KW4HP 2.00 3.00 1.00 .394 .551 M8 1.5MM x 60°
MK4 2.125 1.125 1.00 .394 .557 M6 1.5MM x 60°
MK4P 2.125 1.125 1.00 .394 .557 M6 1.5MM x 60°
MK4H 2.125 2.00 1.00 .394 .557 M6 1.5MM x 60°
MK4HP 2.125 2.00 1.00 .394 .557 M6 1.5MM x 60°
NI4 2.00 1.50 1.00 .393 .591 M8 1.5MM x 60°
NI4P 2.00 1.50 1.00 .393 .591 M8 1.5MM x 60°
NI4H 2.00 2.00 1.00 .393 .591 M8 1.5MM x 60°
NI4HP 2.00 2.00 1.00 .393 .591 M8 1.5MM x 60°
5 KW205 2.313 1.50 1.00 .394 .551 M8 1.5MM x 60°
KW205P 2.313 1.50 1.00 .394 .551 M8 1.5MM x 60°
KW205H 2.313 3.00 1.00 .394 .551 M8 1.5MM x 60°
KW205HP 2.313 3.00 1.00 .394 .551 M8 1.5MM x 60°
KW5 2.313 1.50 1.00 .394 .713 M8 1.5MM x 60°
KW5P 2.313 1.50 1.00 .394 .713 M8 1.5MM x 60°
KW5-2.5H 2.313 2.50 1.00 .394 .719 M8 1.5MM x 60°
KW5-2.5HP 2.313 2.50 1.00 .394 .719 M8 1.5MM x 60°
KW5H 2.313 3.00 1.00 .394 .713 M8 1.5MM x 60°
KW5HP 2.313 3.00 1.00 .394 .713 M8 1.5MM x 60°
KW5F 2.50 1.50 1.00 .394 .750 M8 1.5MM x 60°
KW5FP 2.50 1.50 1.00 .394 .750 M8 1.5MM x 60°
KW5FH 2.50 3.00 1.00 .394 .750 M8 1.5MM x 60°
KW5FHP 2.50 3.00 1.00 .394 .750 M8 1.5MM x 60°
NI5 2.375 1.50 1.00 .433 .669 M8 1.5MM x 60°
NI5P 2.375 1.50 1.00 .433 .669 M8 1.5MM x 60°
NI5H 2.375 2.00 1.00 .433 .669 M8 1.5MM x 60°
NI5HP 2.375 2.00 1.00 .433 .669 M8 1.5MM x 60°
SK5 2.75 1.50 1.00 .394 .748 M8 1.5MM x 60°
SK5P 2.75 1.50 1.00 .394 .748 M8 1.5MM x 60°
SK5H 2.75 3.00 1.00 .394 .748 M8 1.5MM x 60°
SK5HP 2.75 3.00 1.00 .394 .748 M8 1.5MM x 60°
6 KW6 3.00 1.50 1.25 .472 .787 M10 1.5MM x 60°
KW6P 3.00 1.50 1.25 .472 .787 M10 1.5MM x 60°
KW6-2H 3.00 2.00 1.25 .472 .787 M10 1.5MM x 60°
KW6-2HP 3.00 2.00 1.25 .472 .787 M10 1.5MM x 60°
KW6-2.5H 3.00 2.50 1.25 .472 .787 M10 1.5MM x 60°
KW6-2.5HP 3.00 2.50 1.25 .472 .787 M10 1.5MM x 60°
KW6H 3.00 3.00 1.25 .472 .787 M10 1.5MM x 60°
KW6HP 3.00 3.00 1.25 .472 .787 M10 1.5MM x 60°
KW6-4H 3.00 4.00 1.25 .472 .787 M10 1.5MM x 60°
KW6-4HP 3.00 4.00 1.25 .472 .787 M10 1.5MM x 60°
KW6-1W 3.00 1.50 1.00 .472 .787 M10 1.5MM x 60°
KW6-1WP 3.00 1.50 1.00 .472 .787 M10 1.5MM x 60°
KW6-1WH 3.00 3.00 1.00 .472 .787 M10 1.5MM x 60°
KW6-1WHP 3.00 3.00 1.00 .472 .787 M10 1.5MM x 60°
NI6 3.00 1.50 1.25 .551 .787 M10 1.5MM x 60°
NI6P 3.00 1.50 1.25 .551 .787 M10 1.5MM x 60°
NI6H 3.00 3.00 1.25 .551 .787 M10 1.5MM x 60°
NI6HP 3.00 3.00 1.25 .551 .787 M10 1.5MM x 60°
6.5 MK3NE65 3.00 1.50 1.25 .433 .984 M8 1.5MM x 60°
MK3NE65P 3.00 1.50 1.25 .433 .984 M8 1.5MM x 60°
MK3NE65H 3.00 3.00 1.25 .433 .984 M8 1.5MM x 60°
MK3NE65-1W 3.00 1.50 1.00 .433 .984 M8 1.5MM x 60°
MK3NE65-1WH 3.00 3.00 1.00 .433 .984 M8 1.5MM x 60°
8 KW8 4.00 2.00 1.50 .551 .984 M12 1.5MM x 60°
KW8P 4.00 2.00 1.50 .551 .984 M12 1.5MM x 60°
KW8-2.5H 4.00 2.50 1.50 .551 .984 M12 1.5MM x 60°
KW8-2.5HP 4.00 2.50 1.50 .551 .984 M12 1.5MM x 60°
KW8-3H 4.00 3.00 1.50 .551 .984 M12 1.5MM x 60°
KW8-3HP 4.00 3.00 1.50 .551 .984 M12 1.5MM x 60°
KW8H 4.00 4.00 1.50 .551 .984 M12 1.5MM x 60°
KW8HP 4.00 4.00 1.50 .551 .984 M12 1.5MM x 60°
KW8-6H 4.00 6.00 1.50 .551 .984 M12 1.5MM x 60°
KW8-6HP 4.00 6.00 1.50 .551 .984 M12 1.5MM x 60°
KW8-3.75L 3.75 2.00 1.50 .551 .984 M12 1.5MM x 60°
KW8-3.75LP 3.75 2.00 1.50 .551 .984 M12 1.5MM x 60°
KW8-3.75LH 3.75 4.00 1.50 .551 .984 M12 1.5MM x 60°
KW8-3.75LHP 3.75 4.00 1.50 .551 .984 M12 1.5MM x 60°
HW27M8 4.50 2.00 1.50 .630 .984 M12 1.5MM x 60°
HW27M8P 4.50 2.00 1.50 .630 .984 M12 1.5MM x 60°
HW27M8H 4.50 4.00 1.50 .630 .984 M12 1.5MM x 60°
HW27M8HP 4.50 4.00 1.50 .630 .984 M12 1.5MM x 60°
NI8 4.00 2.00 1.50 .551 1.181 M10 1.5MM x 60°
NI8P 4.00 2.00 1.50 .551 1.181 M10 1.5MM x 60°
NI8-2.5H 4.00 2.50 1.50 .551 1.181 M10 1.5MM x 60°
NI8-3H 4.00 3.00 1.50 .551 1.181 M10 1.5MM x 60°
NI8H 4.00 4.00 1.50 .551 1.181 M10 1.5MM x 60°
NI8HP 4.00 4.00 1.50 .551 1.181 M10 1.5MM x 60°
NI205 4.00 2.00 1.50 .669 .984 M12 1.5MM x 60°
NI205P 4.00 2.00 1.50 .669 .984 M12 1.5MM x 60°
10 KW10 4.75 2.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10P 4.75 2.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10-3H 4.75 3.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10-3HP 4.75 3.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10H 4.75 4.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10HP 4.75 4.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10-6H 4.75 6.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10-6HP 4.75 6.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10-8H 4.75 8.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10-8HP 4.75 8.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10-1.5W 4.75 2.00 1.50 .630 1.181 M12 1.5MM x 60°
KW10-1.5WP 4.75 2.00 1.50 .630 1.181 M12 1.5MM x 60°
KW10-1.5WH 4.75 4.00 1.50 .630 1.181 M12 1.5MM x 60°
KW10-1.5WHP 4.75 4.00 1.50 .630 1.181 M12 1.5MM x 60°
KW10-5L 5.00 2.00 1.75 .630 1.181 M12 1.5MM x 60°
KW10-5LP 5.00 2.00 1.75 .630 1.181 M12 1.5MM x 60°
HW27M10 4.75 2.00 1.75 .709 1.181 M14 1.5MM x 60°
HW27M10P 4.75 2.00 1.75 .709 1.181 M14 1.5MM x 60°
HW27M10H 4.75 4.00 1.75 .709 1.181 M14 1.5MM x 60°
HW27M10HP 4.75 4.00 1.75 .709 1.181 M14 1.5MM x 60°
MK4NE600 4.75 2.00 1.50 .630 1.260 M12 1.5MM x 60°
MK4NE600P 4.75 2.00 1.50 .630 1.260 M12 1.5MM x 60°
MK4NE600H 4.75 4.00 1.50 .630 1.260 M12 1.5MM x 60°
MK4NE600HP 4.75 4.00 1.50 .630 1.260 M12 1.5MM x 60°
NI10 4.50 2.00 1.75 .787 1.181 M12 1.5MM x 60°
NI10P 4.50 2.00 1.75 .787 1.181 M12 1.5MM x 60°
NI10-2.5H 4.50 2.50 1.75 .787 1.181 M12 1.5MM x 60°
NI10-3H 4.50 3.00 1.75 .787 1.181 M12 1.5MM x 60°
NI10H 4.50 4.00 1.75 .787 1.181 M12 1.5MM x 60°
NI10HP 4.50 4.00 1.75 .787 1.181 M12 1.5MM x 60°
11 JP11 4.75 2.00 1.50 .709 1.181 5/8 1.5MM x 60°
JP11P 4.75 2.00 1.50 .709 1.181 5/8 1.5MM x 60°
JP11H 4.75 4.00 1.50 .709 1.181 5/8 1.5MM x 60°
JP11HP 4.75 4.00 1.50 .709 1.181 5/8 1.5MM x 60°
12 KW12 5.00 2.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12P 5.00 2.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12-3H 5.00 3.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12-3HP 5.00 3.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12H 5.00 4.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12HP 5.00 4.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12-6H 5.00 6.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12-6HP 5.00 6.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12-8H 5.00 8.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12-8HP 5.00 8.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12-5.5L 5.50 2.50 2.00 .709 1.181 M14 1.5MM x 60°
KW12-5.5LP 5.50 2.50 2.00 .709 1.181 M14 1.5MM x 60°
KW12-5.5LH 5.50 4.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12-5.5LHP 5.50 4.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12-5.5L5H 5.50 5.00 2.00 .709 1.181 M14 1.5MM x 60°
KW12B 5.00 2.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12BP 5.00 2.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-3H 5.00 3.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-3HP 5.00 3.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12BH 5.00 4.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12BHP 5.00 4.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-6H 5.00 6.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-6HP 5.00 6.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-8H 5.00 8.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-8HP 5.00 8.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-5.5L 5.50 2.50 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-5.5LP 5.50 2.50 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-5.5LH 5.50 4.00 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-5.5LHP 5.50 4.00 2.00 .827 1.181 M16 1.5MM x 60°
HW27M12 5.50 2.50 2.00 .827 1.377 M16 1.5MM x 60°
HW27M12P 5.50 2.50 2.00 .827 1.377 M16 1.5MM x 60°
HW27M12H 5.50 4.00 2.00 .827 1.377 M16 1.5MM x 60°
HW27M12HP 5.50 4.00 2.00 .827 1.377 M16 1.5MM x 60°
HW27M12S 5.25 2.00 1.75 .827 1.377 M16 1.5MM x 60°
NI12 5.25 2.00 1.75 .787 1.378 M12 1.5MM x 60°
NI12H 5.25 4.00 1.75 .787 1.378 M12 1.5MM x 60°
NI12HP 5.25 4.00 1.75 .787 1.378 M12 1.5MM x 60°
SK5NE12 5.50 2.00 2.00 .709 1.266 M14 1.5MM x 60°
SK5NE12H 5.50 4.00 2.00 .709 1.266 M14 1.5MM x 60°
SK5NE12HP 5.50 4.00 2.00 .709 1.266 M14 1.5MM x 60°
JP12 5.50 2.50 2.00 .787 1.375 M12 1.5MM x 60°
JP12P 5.50 2.50 2.00 .787 1.375 M12 1.5MM x 60°
JP12H 5.50 4.00 2.00 .787 1.375 M12 1.5MM x 60°
JP12HP 5.50 4.00 2.00 .787 1.375 M12 1.5MM x 60°
14-16 NI15 6.25 2.50 2.00 .827 1.772 M16 1.5MM x 60°
NI15P 6.25 2.50 2.00 .827 1.772 M16 1.5MM x 60°
NI15H 6.25 5.00 2.00 .827 1.772 M16 1.5MM x 60°
NI15HP 6.25 5.00 2.00 .827 1.772 M16 1.5MM x 60°
15 KW15K-2.5H 6.50 2.50 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-2.5HP 6.50 2.50 2.50 .866 1.690 M20 1.5MM x 60°
KW15K 6.50 3.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15KP 6.50 3.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-4H 6.50 4.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-4HP 6.50 4.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15KH 6.50 5.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15KHP 6.50 5.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-6H 6.50 6.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-6HP 6.50 6.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-8H 6.50 8.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-8HP 6.50 8.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-7L 7.00 3.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-7LP 7.00 3.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-7LH 7.00 5.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-7LHP 7.00 5.00 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-7.5L 7.50 3.00 2.50 .866 1.690 20M 1.5MM x 60°
KW15K-7.5LP 7.50 3.00 2.50 .866 1.690 20M 1.5MM x 60°
KW15K-7.5LH 7.50 5.00 2.50 .866 1.690 20M 1.5MM x 60°
KW15K-7.5LHP 7.50 5.00 2.50 .866 1.690 20M 1.5MM x 60°
KW15B 6.50 3.00 2.50 1.004 1.690 M20 1.5MM x 60°
KW15BP 6.50 3.00 2.50 1.004 1.690 M20 1.5MM x 60°
KW15B-4H 6.50 4.00 2.50 1.004 1.690 M20 1.5MM x 60°
KW15B-4HP 6.50 4.00 2.50 1.004 1.690 M20 1.5MM x 60°
KW15BH 6.50 5.00 2.50 1.004 1.690 M20 1.5MM x 60°
KW15BHP 6.50 5.00 2.50 1.004 1.690 M20 1.5MM x 60°
KW15B-6H 6.50 6.00 2.50 1.004 1.690 M20 1.5MM x 60°
KW15B-6HP 6.50 6.00 2.50 1.004 1.690 M20 1.5MM x 60°
KW15B-8H 6.50 8.00 2.50 1.004 1.690 M20 1.5MM x 60°
KW15B-8HP 6.50 8.00 2.50 1.004 1.690 M20 1.5MM x 60°
JP15 5.75 2.50 2.00 .827 1.562 5/8 1.5MM x 60°
JP15P 5.75 2.50 2.00 .827 1.562 5/8 1.5MM x 60°
JP15H 5.75 4.00 2.00 .827 1.562 5/8 1.5MM x 60°
JP15HP 5.75 4.00 2.00 .827 1.562 5/8 1.5MM x 60°
18 NI18 7.00 3.50 2.50 1.024 1.969 M20 1.5MM x 60°
NI18P 7.00 3.50 2.50 1.024 1.969 M20 1.5MM x 60°
NI18H 7.00 5.00 2.50 1.024 1.969 M20 1.5MM x 60°
NI18HP 7.00 5.00 2.50 1.024 1.969 M20 1.5MM x 60°

Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6131

1.5MM x 60° SERRATED
— FULL GRIPS

Made with 6061-T6 aluminum.

Add “C” to beginning of part number when ordering cast iron jaws.

Add “S” to beginning of part number when ordering steel jaws.

← Scroll →

Ø
Diameter

Part
Number

H
Height

B
Slot
Width

F
Bolt
Spacing

I
Screw
Size

P
Pitch

Casting
Ø
5 KW5FG 1.75 .394 .713 M8 1.5MM x 60° 6"
KW5HFG 4.00 .394 .713 M8 1.5MM x 60° 6"
6 KW6FG 1.75 .472 .787 M10 1.5MM x 60° 6"
KW6HFG 4.00 .472 .787 M10 1.5MM x 60° 6"
6.5 MK3NE65FG 1.75 .433 .984 M8 1.5MM x 60° 6"
MK3NE65HFG 4.00 .433 .984 M8 1.5MM x 60° 6"
8 KW8FG 2.00 .551 .984 M12 1.5MM x 60° 8"
KW8HFG 4.00 .551 .984 M12 1.5MM x 60° 8"
HW27M8FG 2.00 .630 .984 M12 1.5MM x 60° 8"
HW27M8HFG 4.00 .630 .984 M12 1.5MM x 60° 8"
10 KW10FG 2.00 .630 1.181 M12 1.5MM x 60° 10"
KW10HFG 4.00 .630 1.181 M12 1.5MM x 60° 10"
HW27M10FG 2.00 .709 1.181 M14 1.5MM x 60° 10"
HW27M10HFG 4.00 .709 1.181 M14 1.5MM x 60° 10"
MK4NE600FG 2.00 .630 1.260 1/2 1.5MM x 60° 10"
MK4NE600HFG 4.00 .630 1.260 1/2 1.5MM x 60° 10"
11 JP11FG 2.00 .709 1.181 5/8 1.5MM x 60° 10"
JP11HFG 4.00 .709 1.181 5/8 1.5MM x 60° 10"
12 KW12FG 2.375 .709 1.181 M14 1.5MM x 60° 12"
KW12HFG 4.00 .709 1.181 M14 1.5MM x 60° 12"
KW12BFG 2.375 .827 1.181 M16 1.5MM x 60° 12"
KW12BHFG 4.00 .827 1.181 M16 1.5MM x 60° 12"
HW27M12FG 2.375 .827 1.377 M16 1.5MM x 60° 12"
HW27M12HFG 4.00 .827 1.377 M16 1.5MM x 60° 12"
SK5NE12FG 2.75 .709 1.265 M14 1.5MM x 60° 12"
SK5NE12HFG 4.00 .709 1.265 M14 1.5MM x 60° 12"
JP12FG 2.375 .787 1.375 M12 1.5MM x 60° 12"
JP12HFG 4.00 .787 1.375 M12 1.5MM x 60° 12"
15 JP15FG 3.00 .827 1.562 5/8 1.5MM x 60° 15"
15-18 KW15KFG 3.00 .866 1.690 M20 1.5MM x 60° 15"
KW15KHFG 4.00 .866 1.690 M20 1.5MM x 60° 15"
KW15BFG 3.00 1.004 1.690 M20 1.5MM x 60° 15"
KW15BHFG 4.00 1.004 1.690 M20 1.5MM x 60° 15"

Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6131

1.5MM x 60° SERRATED
— HARD JAWS

Made with 1018 case hardened steel.

Hard jaws are reversible for OD & ID chucking.

All hard jaws are available in one or two step sets.

All part #’s listed below are two step sets.

← Scroll →
Ø
Diameter
 Part
Number
 L
Length
 H
Height
 W
Width
 B
Slot
Width 		F
Bolt
Spacing 		I
Screw
Size 		P
Pitch
4 KW4RJ 2.50 1.50 1.25 .394 .551 M8 1.5MM x 60°
5 KW5RJ 2.67 1.50 1.25 .394 .713 M8 1.5MM x 60°
6 KW6RJ 2.75 1.50 1.25 .472 .787 M10 1.5MM x 60°
KW6-1RJ 2.75 1.50 1.25 .472 .787 M10 1.5MM x 60°
6.5 MK3NE65RJ 3.00 1.625 1.125 .433 .984 M8 1.5MM x 60°
8 KW8RJ 3.625 2.00 1.50 .551 .984 M12 1.5MM x 60°
KW8-1RJ 3.625 2.00 1.50 .551 .984 M12 1.5MM x 60°
HW27M8RJ 3.25 2.00 1.50 .630 .984 M12 1.5MM x 60°
HW27M8-1RJ 3.25 2.00 1.50 .630 .984 M12 1.5MM x 60°
10 KW10RJ 4.25 2.50 1.75 .630 1.181 M12 1.5MM x 60°
KW10-1RJ 4.25 2.50 1.75 .630 1.181 M12 1.5MM x 60°
MK4NE600RJ 4.213 3.00 1.50 .630 1.260 1/2 1.5MM x 60°
MK4NE600-1RJ 4.213 3.00 1.50 .630 1.260 1/2 1.5MM x 60°
11 JP11RJ 4.125 2.50 1.75 .709 1.181 5/8 1.5MM x 60°
12 KW12RJ 4.25 2.50 2.00 .709 1.181 M14 1.5MM x 60°
KW12-1RJ 4.25 2.50 2.00 .709 1.181 M14 1.5MM x 60°
KW12BRJ 4.25 2.50 2.00 .827 1.181 M16 1.5MM x 60°
KW12B-1RJ 4.25 2.50 2.00 .827 1.181 M16 1.5MM x 60°
HW27M12RJ 4.375 2.50 2.00 .827 1.377 M16 1.5MM x 60°
SK5NE12RJ 4.545 2.75 2.00 .709 1.265 M14 1.5MM x 60°
JP12RJ 4.68 2.50 1.75 .787 1.375 M12 1.5MM x 60°
15 KW15KRJ 5.875 3.50 2.50 .866 1.690 M20 1.5MM x 60°
KW15K-1RJ 5.875 3.50 2.50 .866 1.690 M20 1.5MM x 60°
KW15BRJ 5.875 3.50 2.50 1.004 1.690 M20 1.5MM x 60°
KW15B-1RJ 5.875 3.50 2.50 1.004 1.690 M20 1.5MM x 60°
JP15RJ 5.375 2.50 2.00 .827 1.562 5/8 1.5MM x 60°

Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6131

1.5MM x 60° SERRATED

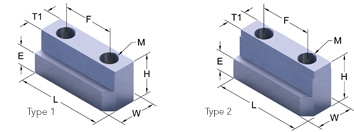

— JAW NUTS



← Scroll →
Ø
Diameter
 Part
Number
 L
Length
 H
Height
 W
Width
 F
Bolt
Spacing 		M
Thread Size
 T1
Tongue
Width 		E
Heel
Height 		Type
rial"> 4 HO4JN .966 .530 .452 .591 M6-1.00 .313 .177 1
KW4JN 1.140 .710 .590 .551 M8-1.25 .392 .220 1
KW204JN 1.030 .591 .570 .551 M8-1.25 .393 .217 1
rial"> 5 KW5JN 1.180 .612 .550 .713 M8-1.25 .392 .220 1
KW5FJN 1.180 .612 .550 .750 M8-1.25 .392 .220 1
rial"> 6 KW6JN 1.437 .875 .687 .787 M10-1.50 .471 .295 1
KW6JN7 1.418 .728 .687 .787 M10-1.50 .471 .295 1
HW7MA6JN 1.468 .846 .669 .787 M10-1.50 .471 .295 1
rial"> 6.5 MK3NE65JN 1.570 .787 .690 .984 M8-1.25 .432 .295 1
rial"> 8 KW8JN 1.910 1.00 .813 .984 M12-1.75 .550 .374 1
KW8JN9 1.830 .807 .807 .984 M12-1.75 .550 .335 1
HW27M8JN 1.781 1.043 .866 .984 M12-1.75 .629 .334 1
HW7MA8JN 1.840 .895 .807 .984 M12-1.75 .550 .335 1
rial"> 10 KW10JN 2.160 1.00 .875 1.181 M12-1.75 .629 .374 1
KW10JN11 2.010 .846 .875 1.181 M12-1.75 .629 .334 1
MK4NE600JN 2.050 .900 .905 1.260 M12-1.75 .629 .315 1
HW27M10JN 2.360 1.082 .945 1.181 M14-2.00 .708 .375 1
HW7MA10JN 1.781 1.043 .866 .984 M12-1.75 .629 .334 1
rial"> 12 KW12JN 2.187 1.313 1.031 1.181 M14-2.00 .709 .531 1
KW12BJN 2.563 1.100 1.160 1.181 M16-2.00 .826 .453 1
BB212JN 2.313 .896 1.160 1.181 M16-2.00 .826 .453 1
HW27M12JN 2.380 1.140 1.060 1.377 M16-2.00 .826 .413 1
HW7MA12JN 2.093 1.082 .945 1.181 M14-2.00 .710 .375 1
SK5NE12JN 2.200 1.320 1.040 1.265 M14-2.00 .708 .531 1
JP12JN 2.187 1.313 1.031 1.375 M12-1.75 .786 .531 1
rial"> 15-18 KW15KJN 3.150 1.75 1.315 1.690 M20-2.50 .865 .609 2
KW15BJN 3.150 1.550 1.375 1.690 M20-2.50 1.003 .758 1
BB218JN 3.150 1.145 1.375 1.690 M20-2.50 1.003 .575 1

Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6131

All of our soft jaws, hard jaws, full grip jaws, and serrated jaw nuts for sale are interchangeable with all competitive brands in the industry, and our processes are ISO 9001:2015 registered.

When you choose to purchase your workholding products from Dillon Manufacturing, you gain the benefits of working with an industry leader who can reduce your downtime and lost profits by way of supplying on-time delivery of high-quality chuck jaws. Our team is able to fill orders quickly and efficiently, and your satisfaction is guaranteed or your money back.

Feel free to browse our selection of 1.5mm x 60° serrated jaws in the categories below, and if you have any questions about specifications or potential applications, be sure to reach out to our dedicated team!
