Soft Jaws  |  Hard Jaws  |  Jaw Nuts


Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6131

3/32 X 90° SERRATED
— SOFT JAWS

Add “A” to beginning of part number when ordering aluminum jaws.

Add “P” to end of part number when ordering pointed jaws.

Made with 1018 steel or 6061 aluminum.

← Scroll →
Ø
Diameter
 Part
Number
 L
Length
 H
Height
 W
Width
 B
Slot
Width 		F
Bolt
Spacing 		I
Screw
Size 		P
Pitch
 # Of
Holes
16 400WB 6.75 3.50 2.50 1.004 1.750 M20 3/32 x 90° 2
400WBP 6.75 3.50 2.50 1.004 1.750 M20 3/32 x 90° 2
400WBH 6.75 5.00 2.50 1.004 1.750 M20 3/32 x 90° 2
400WBHP 6.75 5.00 2.50 1.004 1.750 M20 3/32 x 90° 2
400WBXH 6.75 6.00 2.50 1.004 1.750 M20 3/32 x 90° 2
400WBXHP 6.75 6.00 2.50 1.004 1.750 M20 3/32 x 90° 2
400WBS 7.50 3.50 2.50 1.004 1.500 M20 3/32 x 90° 3
400WBSP 7.50 3.50 2.50 1.004 1.500 M20 3/32 x 90° 3
400WBSH 7.50 5.00 2.50 1.004 1.500 M20 3/32 x 90° 3
400WBSHP 7.50 5.00 2.50 1.004 1.500 M20 3/32 x 90° 3
400WBSXH 7.50 6.00 2.50 1.004 1.500 M20 3/32 x 90° 3
400WBSES 8.00 3.50 2.50 1.004 1.563 M20 3/32 x 90° 3
400WBSESH 8.00 5.00 2.50 1.004 1.563 M20 3/32 x 90° 3
400WBSESXH 8.00 6.00 2.50 1.004 1.563 M20 3/32 x 90° 3
16-20 DM4216P 8.00 3.00 2.50 1.001 1.562 M20 3/32 x 90° 3
DM4216HP 8.00 5.00 2.50 1.001 1.562 M20 3/32 x 90° 3
DM4016 6.25 3.00 2.50 1.001 1.562 M20 3/32 x 90° 3
DM4016P 6.25 3.00 2.50 1.001 1.562 M20 3/32 x 90° 3
DM4016H 6.25 5.00 2.50 1.001 1.562 M20 3/32 x 90° 3
DM4016HP 6.25 5.00 2.50 1.001 1.562 M20 3/32 x 90° 3
32-216 6.25 3.50 2.50 1.004 1.375 M20 3/32 x 90° 2
32-216P 6.25 3.50 2.50 1.004 1.375 M20 3/32 x 90° 2
32-216H 6.25 5.00 2.50 1.004 1.375 M20 3/32 x 90° 2
32-216HP 6.25 5.00 2.50 1.004 1.375 M20 3/32 x 90° 2
32-316 7.25 3.50 2.50 1.004 1.375 M20 3/32 x 90° 3
32-316H 7.25 5.00 2.50 1.004 1.375 M20 3/32 x 90° 3
DM4216 8.00 3.00 2.50 1.001 1.562 M20 3/32 x 90° 3
DM4216H 8.00 5.00 2.50 1.001 1.562 M20 3/32 x 90° 3
DMWB23 6.00 3.50 2.50 1.001 1.375 M20 3/32 x 90° 3
DMWB23P 8.00 3.50 2.50 1.001 1.375 M20 3/32 x 90° 3
DMWB23H 6.00 5.00 2.50 1.001 1.375 M20 3/32 x 90° 3
DMWB23HP 8.00 5.00 2.50 1.001 1.375 M20 3/32 x 90° 3
32-216L 8.25 3.50 2.50 1.004 1.375 M20 3/32 x 90° 2
32-216LP 8.25 3.50 2.50 1.004 1.375 M20 3/32 x 90° 2
32-216LH 8.25 5.00 2.50 1.004 1.375 M20 3/32 x 90° 2
32-316L 10.00 3.50 2.50 1.004 1.375 M20 3/32 x 90° 3
32-216LHP 8.25 5.00 2.50 1.004 1.375 M20 3/32 x 90° 2
32-316LP 10.00 3.50 2.50 1.004 1.375 M20 3/32 x 90° 3
32-316LH 10.00 5.00 2.50 1.004 1.375 M20 3/32 x 90° 3
32-316LHP 10.00 5.00 2.50 1.004 1.375 M20 3/32 x 90° 3
20 AB20 6.70 2.50 2.50 1.102 1.500 M20 3/32 x 90° 2
AB20P 6.70 2.50 2.50 1.102 1.500 M20 3/32 x 90° 2
AB20H 6.70 5.00 2.50 1.102 1.500 M20 3/32 x 90° 2
AB20HP 6.70 5.00 2.50 1.102 1.500 M20 3/32 x 90° 2
500WB 7.75 3.50 2.50 1.004 2.000 M20 3/32 x 90° 2
500WBP 7.75 3.50 2.50 1.004 2.000 M20 3/32 x 90° 2
500WBH 7.75 5.00 2.50 1.004 2.000 M20 3/32 x 90° 2
500WBHP 7.75 5.00 2.50 1.004 2.000 M20 3/32 x 90° 2
500WBXH 7.75 6.00 2.50 1.004 2.000 M20 3/32 x 90° 2
500WBXHP 7.75 6.00 2.50 1.004 2.000 M20 3/32 x 90° 2
500WBS 8.75 3.50 2.50 1.004 1.500 M20 3/32 x 90° 3
500WBSP 8.75 3.50 2.50 1.004 1.500 M20 3/32 x 90° 3
500WBSH 8.75 5.00 2.50 1.004 1.500 M20 3/32 x 90° 3
500WBSHP 8.75 5.00 2.50 1.004 1.500 M20 3/32 x 90° 3
500WBSXH 8.75 6.00 2.50 1.004 1.500 M20 3/32 x 90° 3
500WBSXHP 8.75 6.00 2.50 1.004 1.500 M20 3/32 x 90° 3
500WBSES 10.25 3.50 2.50 1.004 1.500 M20 3/32 x 90° 3
500WBSESH 10.25 5.00 2.50 1.004 1.500 M20 3/32 x 90° 3
500WBSESXH 10.25 6.00 2.50 1.004 1.500 M20 3/32 x 90° 3
20-25 AB2025 6.30 2.50 2.50 1.004 1.500 M20 3/32 x 90° 2
AB2025P 6.30 2.50 2.50 1.004 1.500 M20 3/32 x 90° 2
AB2025H 6.30 5.00 2.50 1.004 1.500 M20 3/32 x 90° 2
AB2025HP 6.30 5.00 2.50 1.004 1.500 M20 3/32 x 90° 2
20-32 AB24 6.30 3.00 3.00 1.102 1.500 M20 3/32 x 90° 2
AB24P 6.30 3.00 3.00 1.102 1.500 M20 3/32 x 90° 2
AB24H 6.30 5.00 3.00 1.102 1.500 M20 3/32 x 90° 2
AB24HP 6.30 5.00 3.00 1.102 1.500 M20 3/32 x 90° 2
25 630WB 9.50 3.50 3.00 1.181 3.000 1.00 3/32 x 90° 2
630WBH 9.50 5.00 3.00 1.181 3.000 1.0 3/32 x 90° 2
630WBXH 9.50 6.00 3.00 1.181 3.000 1.0 3/32 x 90° 2
32-225 10.00 3.50 2.50 1.004 1.750 M20 3/32 x 90° 2
32-225H 10.00 5.00 2.50 1.004 1.750 M20 3/32 x 90° 2
630/265WB 10.25 3.50 2.50 1.004 2.250 M20 3/32 x 90° 2
630/265WBH 10.25 5.00 2.50 1.004 2.250 M20 3/32 x 90° 2
630/265WBXH 10.25 6.00 2.50 1.004 2.250 M20 3/32 x 90° 2
32-225L 12.00 3.50 2.50 1.004 1.750 M20 3/32 x 90° 2
32-225LH 12.00 5.00 2.50 1.004 1.750 M20 3/32 x 90° 2
630/265WBS 12.25 3.50 2.50 1.004 2.000 M20 3/32 x 90° 3
630/265WBSH 12.25 5.00 2.50 1.004 2.000 M20 3/32 x 90° 3
630/265WBSXH 12.25 6.00 2.50 1.004 2.000 M20 3/32 x 90° 3
25-31 DM4025 8.25 3.50 3.50 1.181 2.500 1.00 3/32 x 90° 3
DM4025H 8.25 5.00 3.50 1.181 2.500 1.00 3/32 x 90° 3
DM4225 11.00 3.50 3.50 1.181 2.500 1.00 3/32 x 90° 3
DM4225H 11.00 5.00 3.50 1.181 2.500 1.00 3/32 x 90° 3
31.5 32-315 12.00 3.50 2.50 1.004 2.375 M20 3/32 x 90° 2
32-315H 12.00 5.00 2.50 1.004 2.375 M20 3/32 x 90° 2
32-315L 14.00 3.50 2.50 1.004 2.375 M20 3/32 x 90° 2
32-315LH 14.00 5.00 2.50 1.004 2.375 M20 3/32 x 90° 2
800WB 11.75 3.50 3.00 1.181 3.500 1.00 3/32 x 90° 2
800WBH 11.75 5.00 3.00 1.181 3.500 1.00 3/32 x 90° 2
800WBXH 11.75 6.00 3.00 1.181 3.500 1.00 3/32 x 90° 2
35.5 630WBSES 13.00 3.50 3.00 1.181 1.850 1.00 3/32 x 90° 3

Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6131

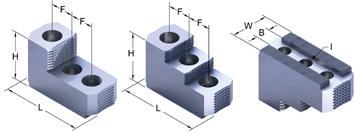

3/32 x 90° SERRATED
— HARD JAWS

Made with 1018 case hardened steel.

Hard jaws are reversible for OD & ID chucking.

All hard jaws are available in one or two step sets.

All part #’s listed below are two step sets.

← Scroll →
Ø
Diameter
 Part
Number
 L
Length
 H
Height
 W
Width
 B
Slot
Width 		F
Bolt
Spacing 		I
Screw
Size 		P
Pitch
20 AB20RJ 5.719 3.00 2.50 1.102 1.500 M20 3/32 x 90°
20-25 AB2025RJ 5.00 3.00 2.50 1.004 1.500 M20 3/32 x 90°
24+ 630WBRJ 6.30 3.50 3.00 1.181 1.969 M24 3/32 x 90°
AB24RJ 5.719 3.00 2.76 1.102 1.500 M20 3/32 x 90°

Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6131

3/32 x 90° SERRATED
— JAW NUTS

← Scroll →
Ø
Diameter
 Part
Number
 L
Length
 H
Height
 W
Width
 M
Thread Size
 T1
Tongue
Width 		E
Heel
Height 		S1
Step
Height
16-20 1620TN 1.37 1.35 1.37 3/4 1.003 .563 .787
20+ AB2025JN 1.181 1.34 1.375 M20 1.003 .590 .750
AB20JN 1.181 1.375 1.58 M20 1.101 .590 .785
AB24JN 1.26 1.58 1.58 M20 1.101 .61 .970
25+ 25TN 1.37 2.638 1.37 3/4 1.003 .571 2.067
2540TN 1.772 1.752 1.772 1" 1.180 .728 1.024
