New Britain | Howa HO18 | Bullard | Buck
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6114
NEW BRITAIN
— SOFT JAWS
Add “A” to beginning of part number when ordering aluminum jaws.
Add “P” to end part number when ordering pointed jaws.
Made with 1018 steel or 6061 aluminum.
|
Ø Diameter |
Part Number |
L Length |
H Height |
W Width |
T Tongue Width |
F Bolt Spacing |
F2 Bolt Spacing 2 |
S Key Slot Width |
I Screw Size |
|---|---|---|---|---|---|---|---|---|---|
| 5 7/8 | DM5NB | 2.625 | 2.00 | 2.00 | .499 | 1.000 | N/A | .376 | 3/8 |
| 6 3/4 | DM6NB | 3.00 | 2.50 | 2.50 | .374 | 1.250 | 1.000 | .376 | 3/8 |
| 7 1/2 | DM7NB | 3.375 | 2.50 | 2.50 | .374 | 1.438 | 1.063 | .376 | 1/2 |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6114
Howa HO18
— SOFT JAWS
Add “A” to beginning of part number for aluminum jaws.
Made with 1018 steel or 6061 aluminum.
Hard jaws made with 1018 case hardened steel.
|
Ø Diameter |
Part Number |
L Length |
H Height |
W Width |
B Slot Width |
F Bolt Spacing |
S Key Slot Width |
I Screw Size |
|---|---|---|---|---|---|---|---|---|
| 8 | HW18M8 | 3.94 | 1.50 | 1.25 | .551 | 1.260 | .630 | M10 |
| 10 | HW18M10 | 4.33 | 1.75 | 1.25 | .630 | 1.339 | .630 | M12 |
| 12 | HW18M12 | 5.12 | 2.00 | 1.50 | .630 | 1.575 | .787 | M12 |
| 15 | HW18M15 | 6.30 | 2.50 | 1.50 | .630 | 2.165 | .984 | M12 |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6114
Bullard
— SOFT JAWS
Add “A” to beginning of part number for aluminum jaws.
Made with 1018 steel or 6061 aluminum.
Hard jaws made with 1018 case hardened steel.
|
Ø Diameter |
Part Number |
L Length |
H Height |
W Width |
F Bolt Spacing |
S Key Slot Width |
I Screw Size |
|---|---|---|---|---|---|---|---|
| 36+ | DMBUL36 | 6.625 | 4.00 | 3.00 | 3.250 | .626 | 7/8 |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6114

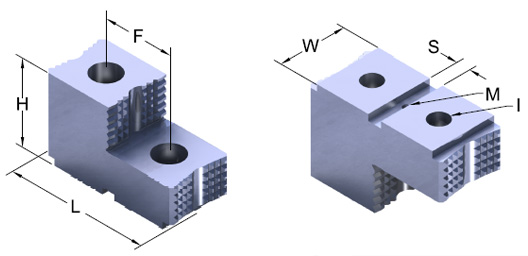

Bullard
— HARD JAWS
Add “A” to beginning of part number for aluminum jaws.
Made with 1018 steel or 6061 aluminum.
Hard jaws made with 1018 case hardened steel.
|
Ø Diameter |
Part Number |
L Length |
H Height |
W Width |
F Bolt Spacing |
S Key Slot Width |
I Screw Size |
|---|---|---|---|---|---|---|---|
| DMBUL36RJ | 6.625 | 4.00 | 3.00 | 3.250 | .626 | 7/8 | |
| DMBUL36RJ4 | 6.625 | 4.00 | 3.00 | 3.250 | .626 | 7/8 |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6114
Buck
— SOFT JAWS
Add “A” to beginning of part number for aluminum jaws.
Add “P” to end part number when ordering pointed jaws.
Made with 1018 steel or 6061 aluminum.
Hard jaws made with 1018 case hardened steel.
Hard jaws are reversible for OD & ID chucking.
All hard jaws are available in one or two step sets.
All part #’s listed below are two step sets.
|
Ø Diameter |
Part Number |
L Length |
H Height |
W Width |
B Slot Width |
F Bolt Spacing |
S Key Slot Width |
I Screw Size |
|---|---|---|---|---|---|---|---|---|
| 6 | DM1050 | 3.00 | 2.00 | 1.00 | .741 | 1.688 | .375 | 5/16 |
| DM1050-3H | 3.00 | 3.00 | 1.00 | .741 | 1.688 | .375 | 5/16 | |
| 7.5 | DM1105 | 3.188 | 2.00 | 1.25 | .866 | 1.688 | .375 | 5/16 |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6114
Buck
— FULL GRIPS
Made with 6061-T6 aluminum.
Add “C” to beginning of part number when ordering cast iron jaws.
Add “S” to beginning of part number when ordering steel jaws.
|
Ø Diameter |
Part Number |
H Height |
B Slot Width |
F Bolt Spacing |
S Key Slot Width |
I Screw Size |
Casting Ø |
|---|---|---|---|---|---|---|---|
| 6 | DM1050FG | 2.13 | .741 | 1.688 | .375 | 5/16 | 6 |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home3/carlscou/public_html/dillon/wp-includes/functions.php on line 6114

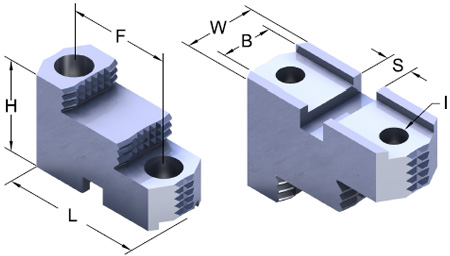

Buck
— HARD JAWS
Add “A” to beginning of part number for aluminum jaws.
Add “P” to end part number when ordering pointed jaws.
Made with 1018 steel or 6061 aluminum.
Hard jaws made with 1018 case hardened steel.
Hard jaws are reversible for OD & ID chucking.
All hard jaws are available in one or two step sets.
All part #’s listed below are two step sets.
|
Ø Diameter |
Part Number |
L Length |
H Height |
W Width |
B Slot Width |
F Bolt Spacing |
S Key Slot Width |
I Screw Size |
|---|---|---|---|---|---|---|---|---|
| DM1050RJ | 2.531 | 1.50 | 1.00 | .741 | 1.688 | .375 | 5/16 | |
| DM1050-1RJ | 2.531 | 1.50 | 1.00 | .741 | 1.688 | .375 | 5/16 |
